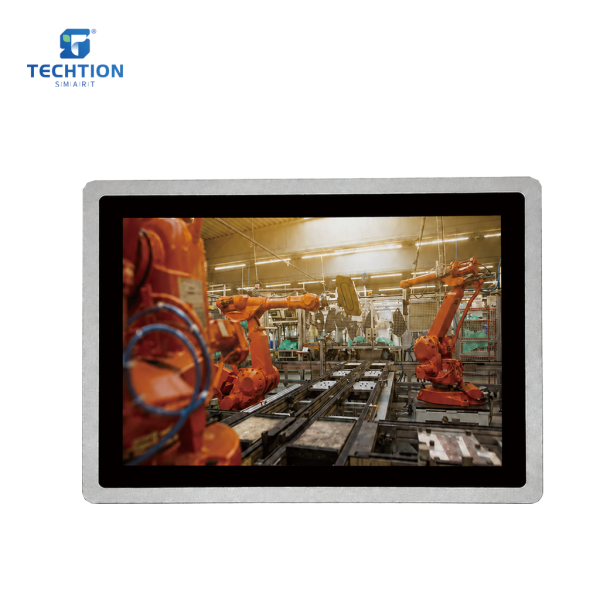

TS-150MCWJ

  • 15″ industrial-grade display with 1024 × 768 resolution, delivering clear and stable visuals.
  • High brightness of 400 nits, suitable for various industrial lighting conditions.
  • Industrial-grade design with an aluminum frame, sheet metal enclosure, and tempered glass front panel for durability and robustness.
  • Front panel rated IP65 for dust and water resistance in harsh environments.
  • Long-life backlight system with a design lifespan of ≥50,000 hours for continuous operation.
  • Comprehensive I/O including DVI, VGA and HDMI input.

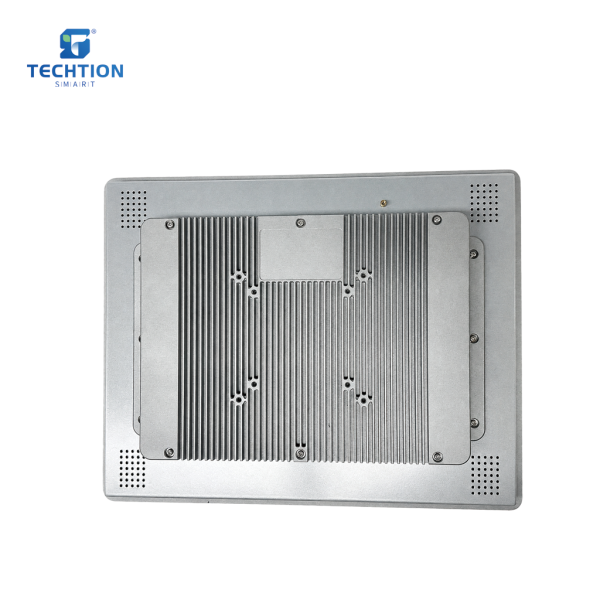

  • Standard VESA mounting holes for flexible installation options.
  • Suitable for a wide range of industrial environments, meeting high-reliability application requirements.
Back PreviousNext
Product Details
Main Parameters Power consumption
Model TS-150MCWJ Standby power（w） ≤0.5W
Product type Industrial Monitor Power consumption（ w） ≤30W
Structure Aluminum Frame+Sheet Metal Enclosure Supply Voltage（v） DC9-36V
Brand TECHTION Audio output power 4Ω*2W (Optional）
Display Parameters Dimensions
LCD Size 15” Packing Size (mm) TBD

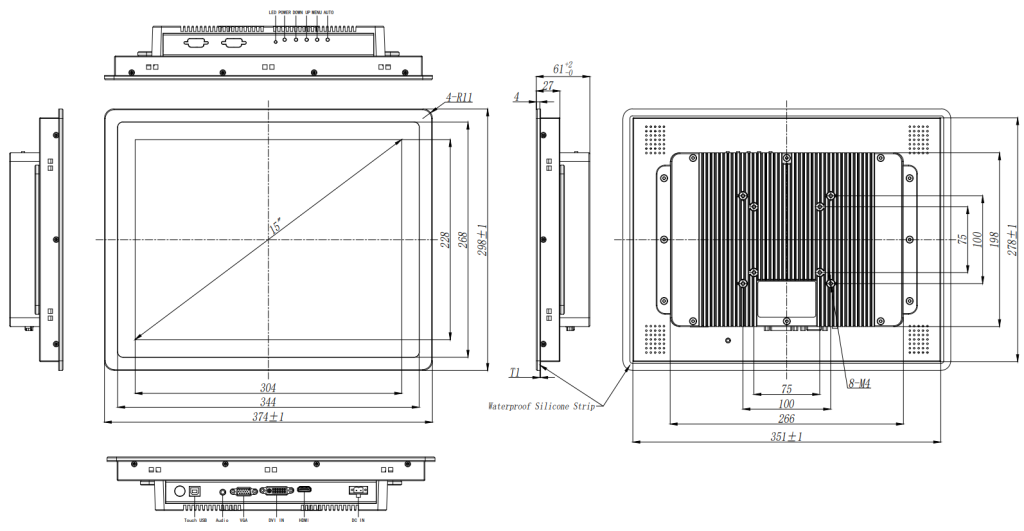

Panel Type a-Si TFT-LCD Product Dimensions(mm) 374*298*61mm
Active Area 304.128(H) × 228.096(V)mm NW(kg) TBD
Resolution 1024*768 GW(kg) TBD
Contrast Ratio 1000:1 VESA Hole (mm) 75*75/100*100mm
Picture Aatio 4:3 Installation VESA/Wall-mount/Desktop/Embedded
Viewing Angle 89/89/89/89(Typ.)(CR≥10) R/L/U/D Accessories
Display Mode Normally Black Power Cable 1 (AC 100-240V   50/60Hz)
Response Time 25 ms (Tr+Tf) Power adapter 1   (12V5A)
Backlight Type E-LED HDMI Cable *1
Brightness 500cd/m2（without CTP) VGA/DVI Cable Optional
Life span ≥50000H Screw Optional
IP Rating IP65 (front screen) Environment
Touch parameters (Optional ) Operating temperature -20℃ ~70℃
Touch Types Capacitive(G+G) Operating humidity 10%～85% RH Non-Condensing
Clicks Capacitive ＞50 million times Storage temperature -30℃ ~80℃
Surface hardness 7H Storage humidity 5%~90% RH Non-Condensing
Touch Point 10 points AD Board
Type of glass Chemically strengthened glass External Connectors DVI IN*1/VGA IN*1/HDMI IN*1/DC9-36V*1/Audio*1
Transmittance > 80% OSD Buttons POWER/DOWN/UP/MENU/AUTO
