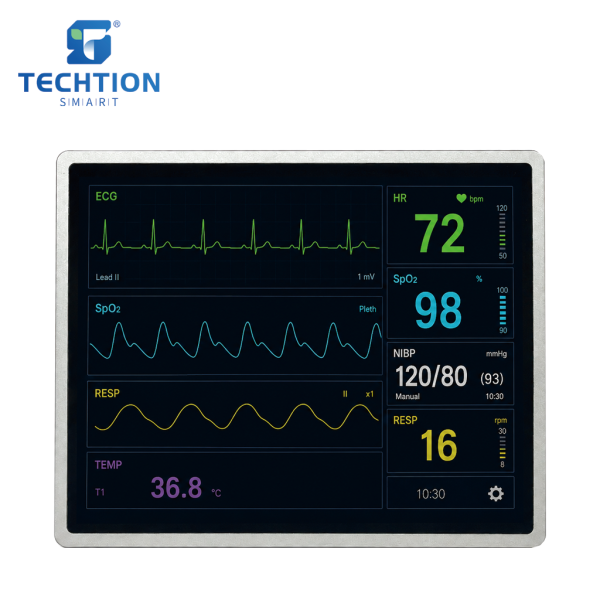

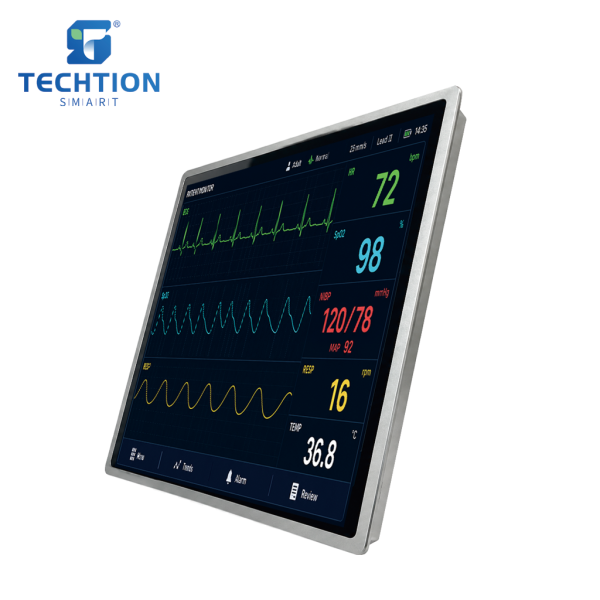

TS-190PCWJ

  • 19″ industrial-grade display with 1024 × 768 resolution, equipped with high-speed Windows system.
  • High brightness of 450 nits, suitable for various industrial lighting conditions.
  • Industrial-grade design with an aluminum frame, sheet metal enclosure, and tempered glass front panel for durability and robustness.

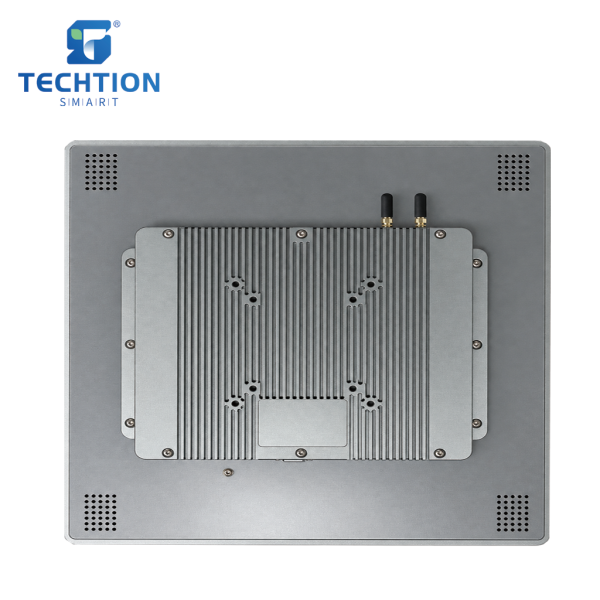

  • The whole machine is fully enclosed and fanless design, strong heat dissipation, energy saving and quiet.
  • Front panel rated IP65 for dust and water resistance in harsh environments.
  • Long-life backlight system with a design lifespan of ≥50,000 hours for continuous operation.
  • It has good earthquake resistance and impact resistance, and can adapt to harsh environments.
  • Standard VESA mounting holes for flexible installation options.
  • Suitable for a wide range of industrial environments, meeting high-reliability application requirements.
Back PreviousNext
Product Details
Main Parameters Mainboard solution
Model TS-190PCWJ CHIP J6412
Product Type Industrial Panel PC CPU Integrated Intel®Celeron J6412 @2.0GHz  Quad-Core
Frame+Structure Aluminum Frame+Sheet Metal Enclosure GPU Integrated Intel®UHD Graphics 400 MHz
Brand TECHTION DDR 8G
Display Parameters EMMC SSD 128G
LCD Size 19” OS Windows 10（Windows 11/Linux optional）
Active Area 374.787(H) * 299.8272(V)mm LAN 1000M
Resolution 1280*1024 WiFi wifi-2.4G /5G/WIFI6  (optional）
Contrast Ratio 1000:1 B/T 4.0/5.3  (optional）
Picture Aatio 4:3 Interface USB*4，LAN*1，HDMI OUT *1，VGA*1 DC IN*1，RS232*2 RS485*2
Viewing Angle 89/89/89/89(Typ.)(CR≥10) Power consumption
Response Time 14ms Standby Power（w） ≤0.5W
Backlight Type E-LED Power Consumption（w） ≤40W
LCMBrightness 450cd/m2 Supply Voltage（v） DC12V
Life Span 50000H Dimensions
IP Rating IP65 Packing Size (mm) TBD

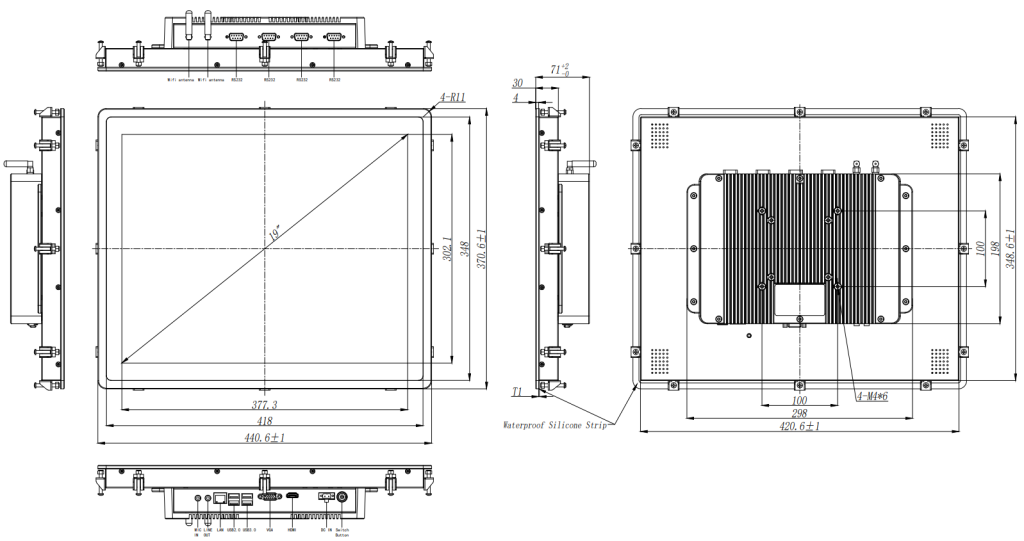

Touch parameters (Optional ) Product Dimensions(mm) 440.6*370.6*71mm
Touch Types Capacitive(G+G)  optical bonded NW(kg) TBD
Clicks ≥50 million times GW(kg) TBD
Surface Hardness 7H VESA(mm) 75*75/100*100mm
Touch Point 10 points Installation VESA/Wall-mount/Desktop/Embedded
Type of Glass Chemically strengthened glass AD Board
Transmittance ＞85% AC Power Cable *1
Environment Power Adapter *1  12V/5A  (AC 100-240V  50/60Hz)
Operating Temperature -20℃~70℃ Desktop Stand Optional
Operating Humidity 10%～90% RH Non-Condensing HDMI Cable Optional
Storage Temperature -30℃~80℃ Network Cable Optional
Storage Humidity 10%~90% RH Non-Condensing
