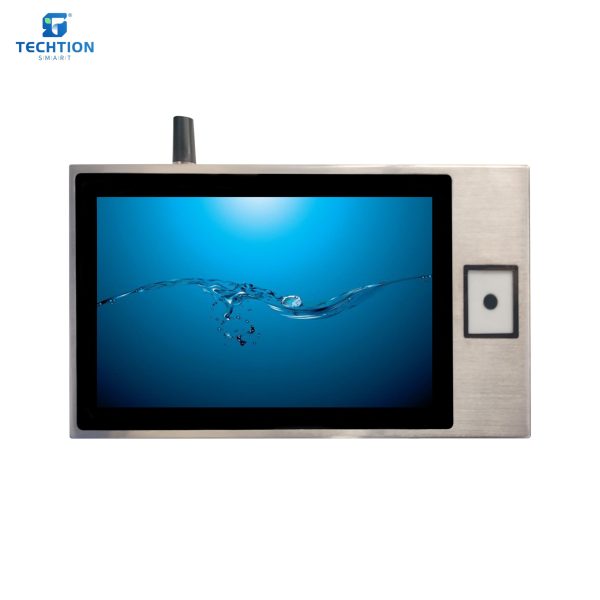

13.3 inch Stainless Steel X86 Panel PC





● The whole machine is fully enclosed and fanless design,strong heat dissipation, energy saving and quiet.

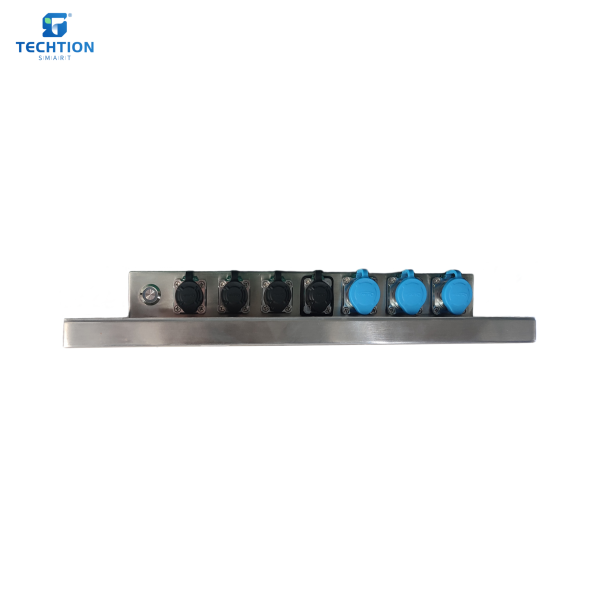

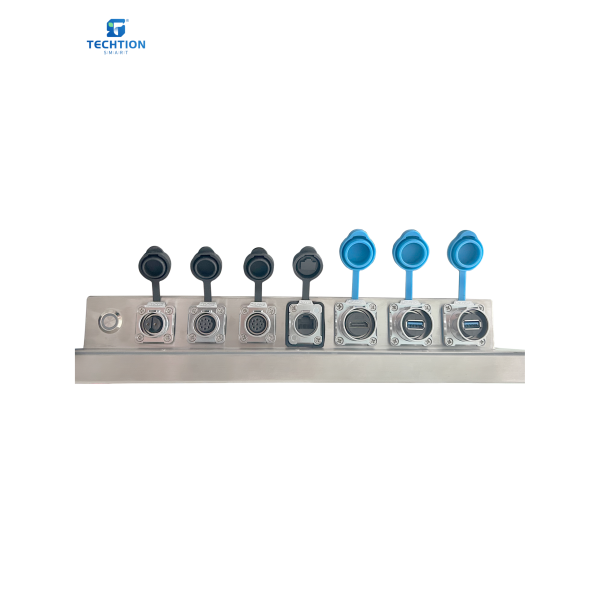

● SUS304 material, IP67 dustproof and waterproof standard,all interfaces and sockets are aviation sockets.

● Taiwan EETI waterproof control solution, supports normal use in water droplets environment.

● Integrated barcode scanning function, supports scanning internationally used 1D Barcode and 2D Barcode

● Supports RTC real-time clock, scheduled power on and off, network wake-up, and RS232 serial port centralized control.

● Applications : Food processing plants ,water treatment plants, pharmaceutical plants, meat slaughterhouses, chemical plants, etc.

Back PreviousNext
Product Details

Main Parameters Mainboard Solution
Model TS-133PCBX CHIP I5-6200U
Product Type Stainless Steel X86 Panel PC CPU Integrated Intel I5-6200U@2.3GHz
Frame+Structure SUS304  Stainless Steel GPU Intel® HD Graphics 520
Brand TECHTION DDR 4G
Display Parameters EMMC 128G SSD
LCD Size 13.3” OS Windows 10 Pro（Windows 11/Linux optional）
Active Area 293.76(W)×165.24(H) mm LAN 1000M
Resolution 1920*1080 WiFi Support
Contrast Ratio 900:1 B/T Support
Picture Aatio 16:9 Interface 2*USB3.0、1*HDMI、2*RS232、1*LAN、1*DC IN
Viewing Angle 85/85/85/85(Typ.)(CR≥10) Power Consumption
Response Time 25ms Standby Power（w） ≤0.5W
Backlight Type E-LED Power Consumption（w） ≤30W
Brightness 350cd/m2 Supply Voltage（v） DC12V
Life Span 50000H Dimensions
IP Rating IP67 Packing Size (mm) TBD
Touch Parameters Product Dimensions(mm) 412.23*221.8*63.40mm
Touch Types Capacitive(G+G)  Optical Bonded NW(kg) TBD
Clicks Capacitive＞50 million times GW(kg) TBD
Surface Hardness 6H VESA(mm) 75*75mm/100*100mm
Touch Point 10 points Installation Wall Mounted /Hanging/Desktop
Type of Glass Chemically Strengthened Glass（AG) Accessories
Transmittance ＞87% AC Power Cable *1
Environment  Power Adapter *1  12V/5A  (AC 100-240V  50/60Hz)
Operating Temperature -20℃~70℃ RS232 Cable *2
Operating Humidity 5%～95% RH Non-Condensing USB Cable *2
Storage Temperature -20℃~70℃ HDMI Cable *1
Storage Humidity 5%~95% RH Non-Condensing Network Cable *1
