15.6 inch Intelligent X86 Panel PC





  • Front panel IP65 dustproof and waterproof standard
  • The whole machine is made of aluminum alloy and is die-cast in one piece.
  • It has good earthquake resistance and impact resistance, and can adapt to harsh environments.
  • Supports RTC real-time clock, scheduled power on and off, network wake-up, and RS232 serial port centralized control.
  • Applications : Outdoor self-service vending terminal, Outdoor transportation (charging pile、Scenic guide board 、Electronic bus stop sign、Outdoor light pole display etc）.
Back
Product Details



Main Parameters X86 Solution
Model TS-156PHD CHIP J1900
Product Type Intelligent X86 Panel PC CPU Integrated Intel®Celeron J1900 @2.0GHz  Quad-Core
Frame Aluminum Die-Casting/Black GPU Integrated Intel®UHD Graphics 600
Brand TECHTION DDR DDR4-4G
Display Parameters EMMC SSD 128G
LCD Size 15.6” OS Windows 10 Pro（Windows 11/Linux optional）
Active Area 344.16(H)x193.59(V) LAN 1000M
Resolution 1920*1080 WiFi 2.4G/5G
Panel Type Transflective B/T 4

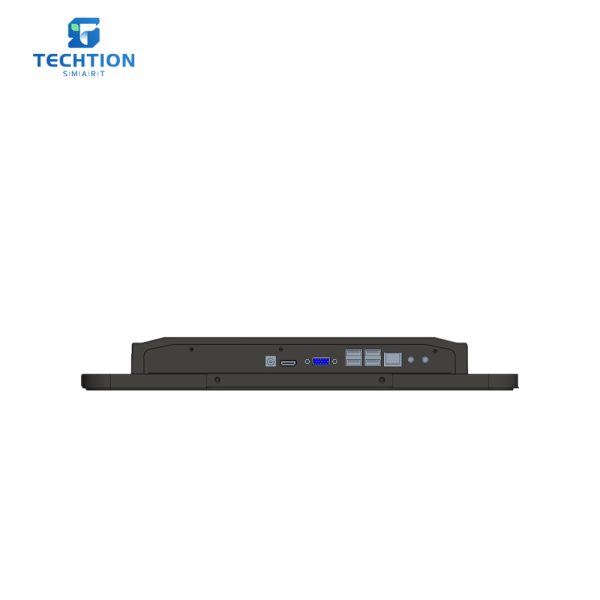

Contrast Ratio 8:1 Interface USB3.0*2，RJ45*1，VGA*1，HDMI *1，DC12V*1，RS232*1，USB2.0*2，LINE OUT*1，MIC IN*1，Wifi antenna*1，B/T antenna*1，POWER*1
Picture Aatio 16:9 Power Consumption
 Display Colors 16.7M Standby Power（w） ≤0.5W
Viewing Angle 60/60/60/60(Typ.)(CR>2) Power Consumption（w） ≤40W
Response Time 15 ms Supply Voltage（v） DC12V
Backlight Type E-LED Audio Output Power 4Ω*2W
Brightness TBD Dimensions
Life Span 30000H Packing Size (mm) 430*365*153mm

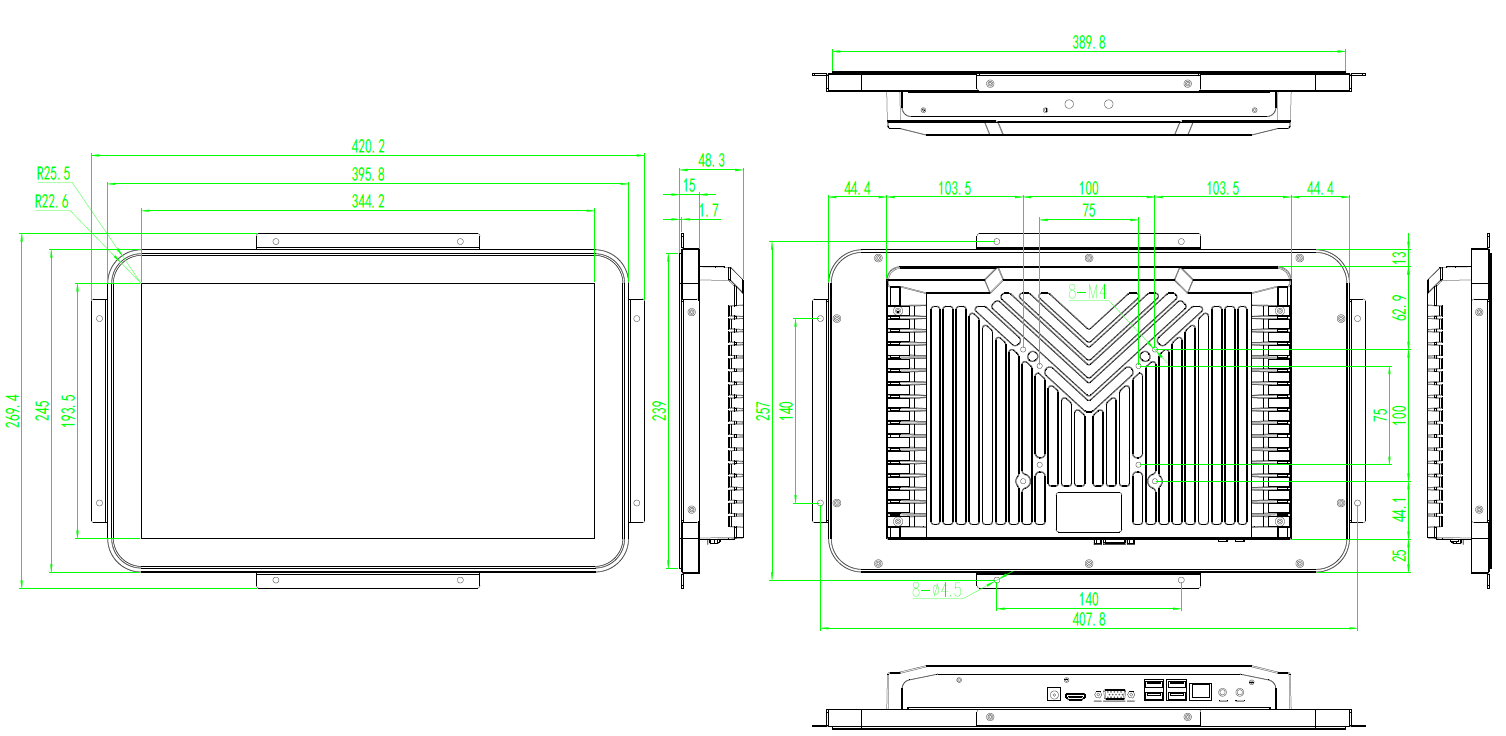

Protection IP65 (front screen) Product Dimensions(mm) 395.8*245*48.3mm
Touch Parameters NW(kg) 3.17kg
Touch Types Capacitive(G+G) GW(kg) 4.23kg
Clicks Capacitive＞50 million times Embedded Hole Size(mm) 391.8*241mm
Surface Hardness 7H Installation Embedded
Touch Point 10 points Accessories
Type of Glass Chemically strengthened glass Power Cable 1
Transmittance ＞85% Power Adapter 1 12V/5A  (AC 100-240V  50/60Hz)
Environment Fixed Part Recessed clip*4，PM4x30 screw*4
Operating Temperature -10℃~60℃ Wifi Antenna 1
Operating Humidity 10%～90% RH Non-Condensing B/T Antenna 1
Storage Temperature -20℃~70℃
Storage Humidity 10%～90% RH Non-Condensing
