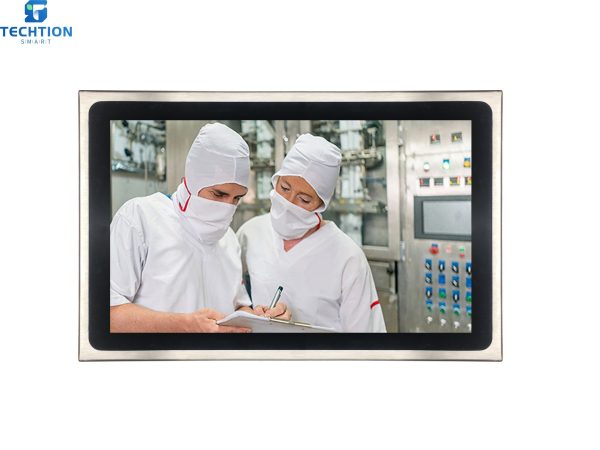

15.6 inch Stainless Steel X86 Panel PC



● 16：9 wide screen, equipped with high-speed Windows system.

● The whole machine is fully enclosed and fanless design,strong heat dissipation, energy saving and quiet.

● SUS304 material, IP67 dustproof and waterproof standard,all interfaces and sockets are aviation sockets.

● It has good earthquake resistance and impact resistance, and can adapt to harsh environments.

● Supports RTC real-time clock, scheduled power on and off, network wake-up, and RS232 serial port centralized control.

● Applications : Maritime vessels, port terminals, oilfield equipment, outdoor engineering vehicles, military and security vehicles, etc.

Back PreviousNext
Product Details



Main Parameters Power Consumption
Model TS-156PCBX Standby Power（w） ≤0.5W
Product Type Stainless Steel X86 Panel PC Power Consumption（w） ≤40W
Frame+Structure SUS304  Stainless Steel Supply Voltage（v） DC12V
Brand TECHTION Dimensions
Display Parameters Packing Size (mm) TBD

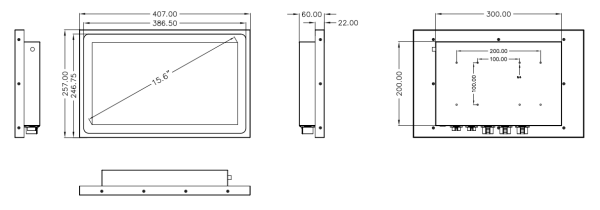

LCD Size 15.6” Product Dimensions(mm) 407*257*60mm
Active Area 344.16(H) * 193.59(V)mm NW(kg) 4.8kg
Resolution 1920*1080 GW(kg) About 12kg
Contrast Ratio 800:1 VESA(mm) 100*100mm/200*100mm
Picture Aatio 16:9 Installation Wall Mounted /Hanging/Desktop
Viewing Angle 85/85/85/85(Typ.)(CR≥10) Accessories
Response Time 25ms AC Power Cable *1
Backlight Type E-LED Power Adapter *1  12V/5A  (AC 100-240V  50/60Hz)
Brightness 1000cd/m2 Desktop Stand *1
Life Span 50000H HDMI Cable *1
IP Rating IP67 Network Cable *1
Mainboard Solution Environment
CHIP J6412 Operating Temperature -20℃~70℃
CPU Integrated Intel®Celeron J6412 @2.0GHz  Quad-Core Operating Humidity 10%～90% RH Non-Condensing
GPU Integrated Intel®UHD Graphics 600 Storage Temperature -20℃~80℃
DDR DDR4-8G Storage Humidity 10%~90% RH Non-Condensing
EMMC 128G SSD Touch Parameters
OS Windows 10（Windows 11/Linux optional） Touch Types Capacitive(G+G)  optical bonded
LAN 1000M Clicks ≥50 million times
WiFi WIFI6 （optional） Touch Point 10 points
B/T 5.3 （optional） Type of Glass Chemically strengthened glass

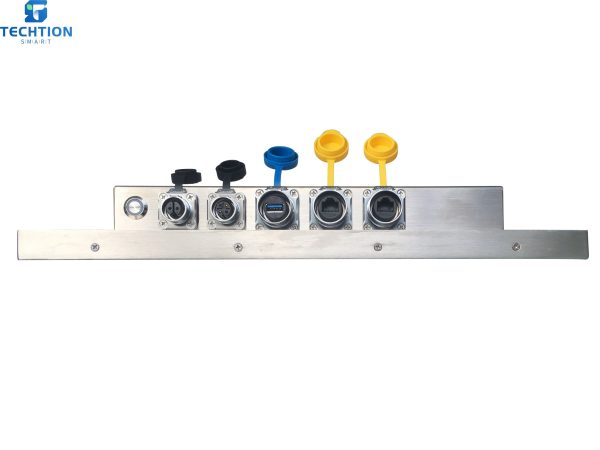

Interface USB*2，LAN*1，HDMI OUT *1，DC IN*1，RS232*2 Transmittance ＞87%
